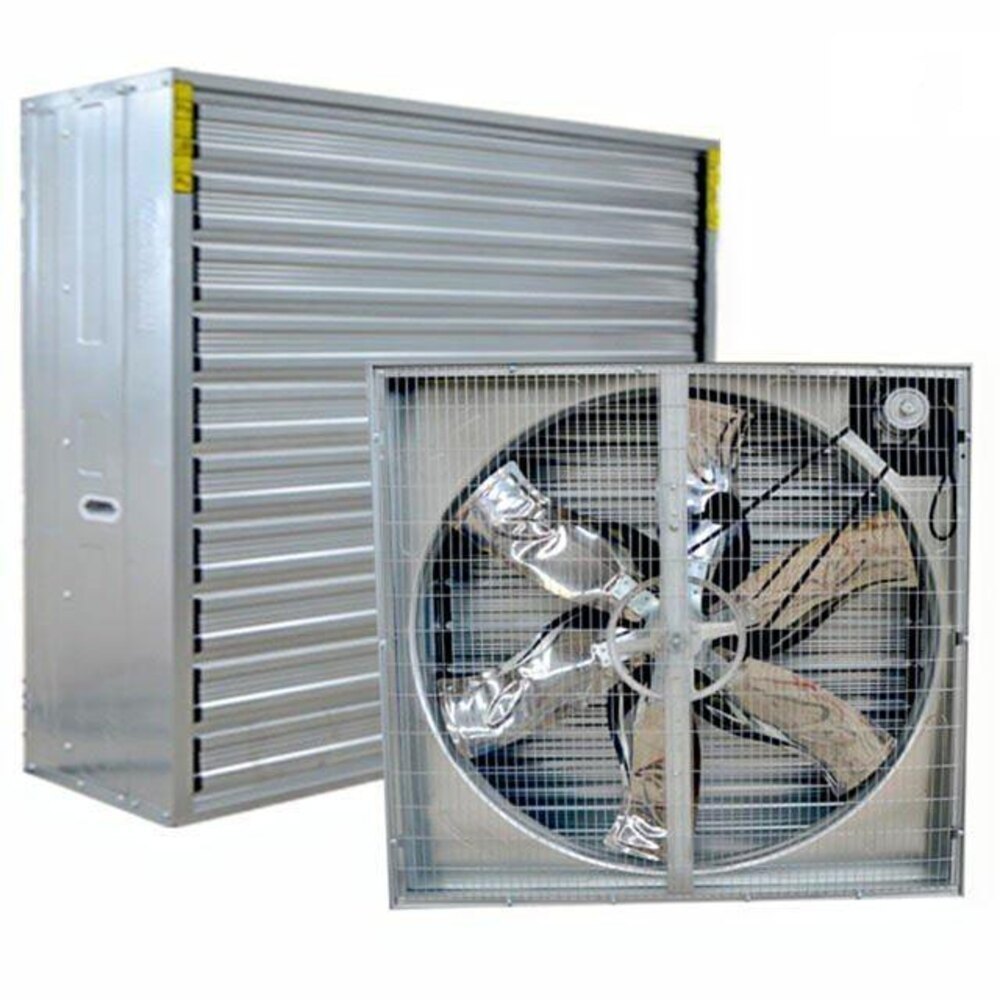

MKS EXHAUST FAN

Product Detail:

A) Body Material: Galvanized steel sheet.
B) Blade: Stainless steel sheet for air blowing.
C) Ball Bearing: Heavy-duty, rust-proof, double ball.
D) Shutter: Stainless steel.
E) Motor: Standard F-class insulation, increase protection-54 standard, Y-2 series, 100% copper wire.
F) Electric Consumption: Very low.
G) Safety Net: GI wire safety net.

This product is available in customized sizes as per your requirement

Country of Origin Italy/Thailand/China

We can supply Customize Size, as per requirement.

Technical Parameter

Model No	Dimension(mm) L X W X T	Diameter of Blade (mm)	Speed (RPM)	Volume of Flow m3/hr	Noise(db)	Power (kW)	Voltage
MKS-01 (54″)	1380 X1380 X 425	1270	485	44500	< 65	1.5/1.1	380
MKS-02 (48″)	1220 X 1220 X425	1110	520	38500	<65	1.1/0.75	380
MKS-03 (42″)	1060 X 1060 X 425	960	580	32500	<65	0.75	380
MKS-04 (36″)	920 X 920 X 425	750	810	27000	<65	0.75	380
MKS-05 (30″)	766 X 766 X 400	612	960	17500	<65	0.50	380
MKS-06 (24″)	610 X 610 X 400	485	1050	12500	<65	0.50	380
